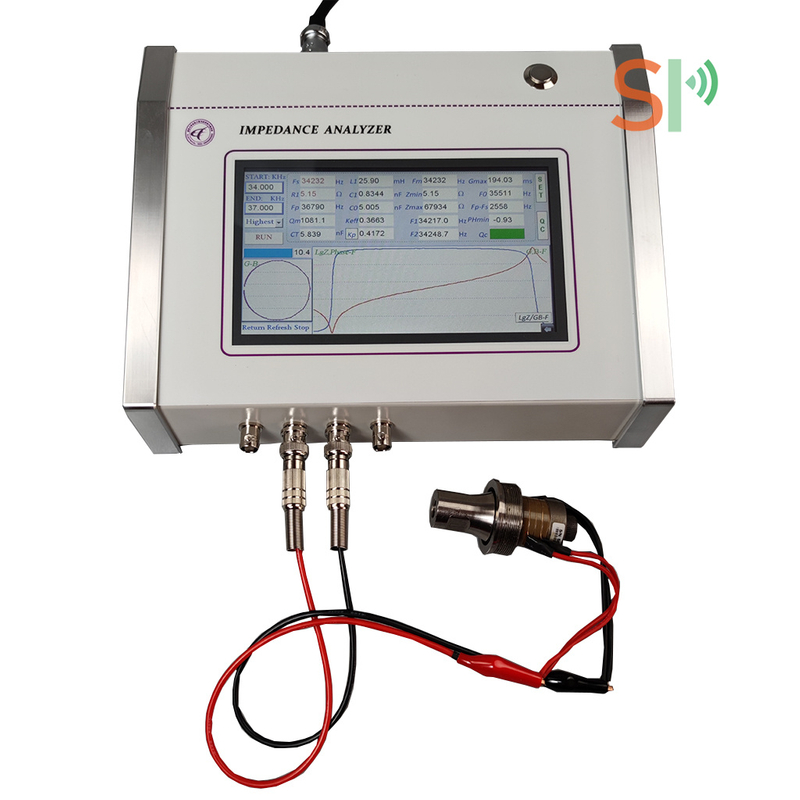

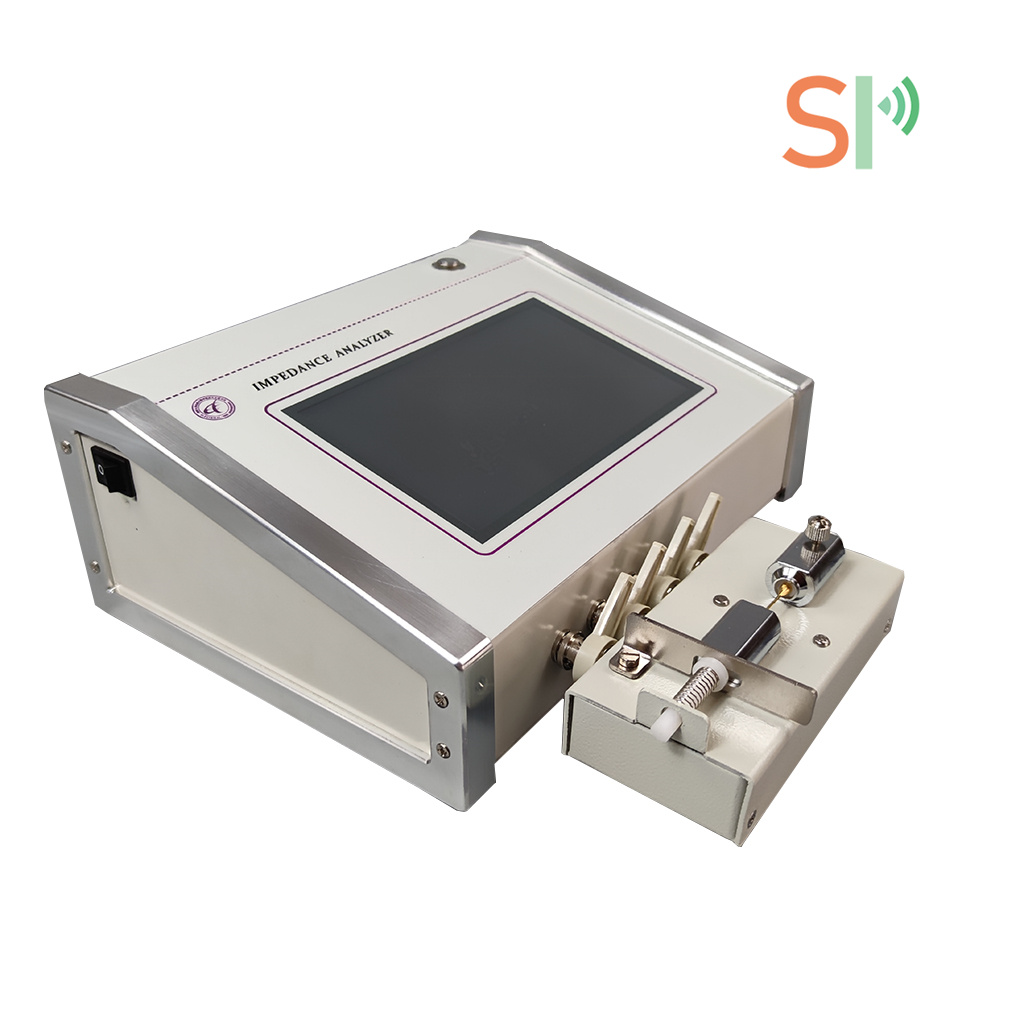

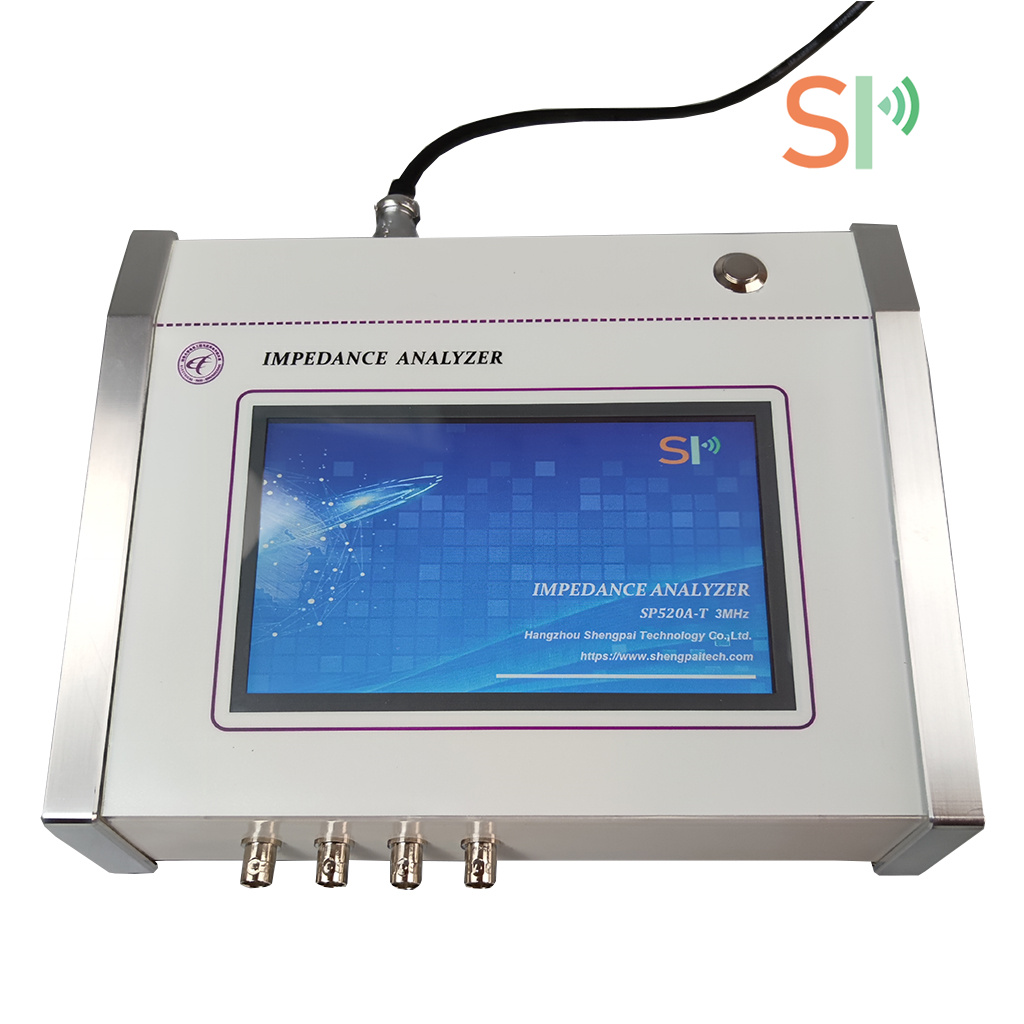

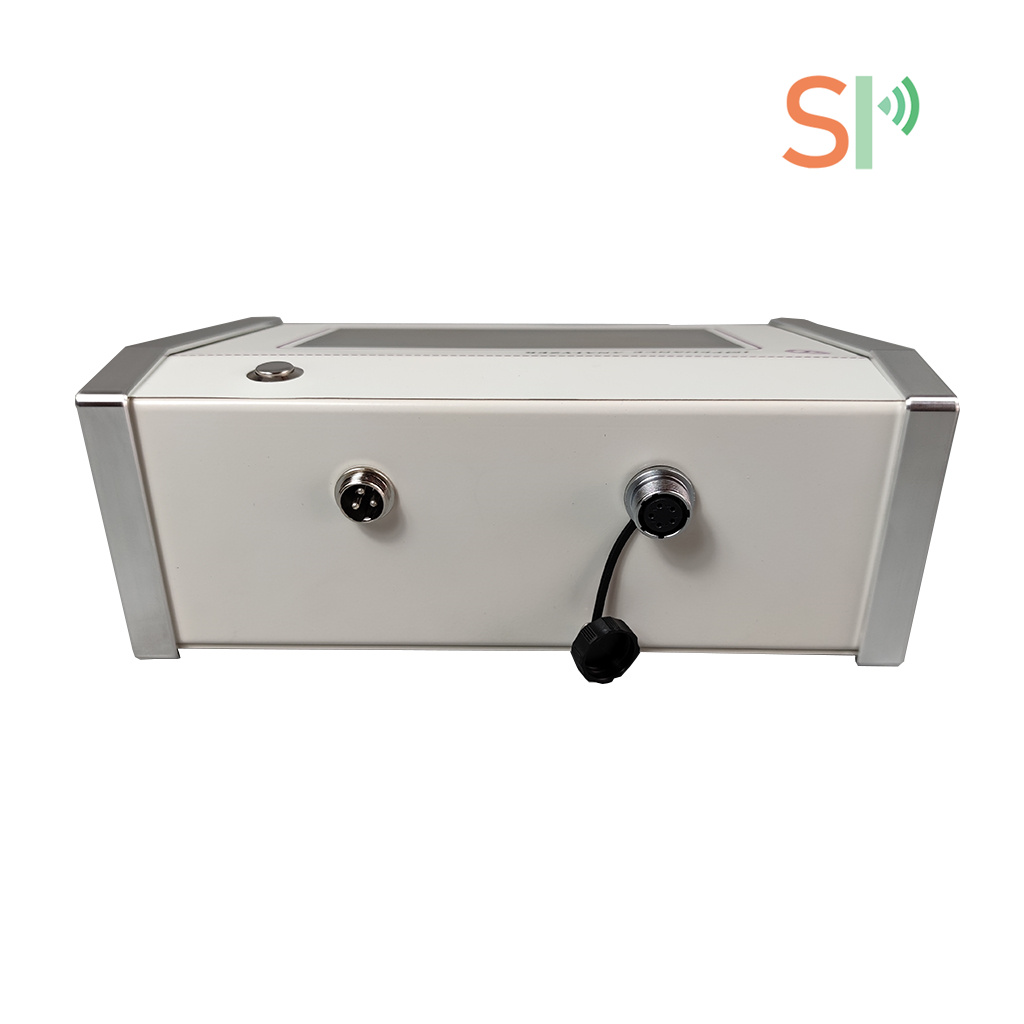

SP-520A
SP
8543709990
Functions moldel | SP520A-S | SP520A-T | SP520A-V |
Characteristics | Portable,Full-screen touch screen,7.8 inch screen | ||
Size | L 240 mm;W 190mm;Front height 50mm;Back height 100mm | ||
Frequency range | 1KHZ-1MHZ | 1-3MHZ | 1-5MHZ |
Measurement | All parametric graphs | ||
Basic accuracy | <0.1% | ||
Measuring speed | 5 seconds per piece(1200 point scan) | ||
Frequency accuracy | ±10ppm | ||
Phase Accuracy | 0.15 degrees | ||
| Ambient temperature | 10-40ºC | ||
Impedance range | 1Ω-1MΩ | ||
Stepped frequency | 0.1Hz to Any | ||

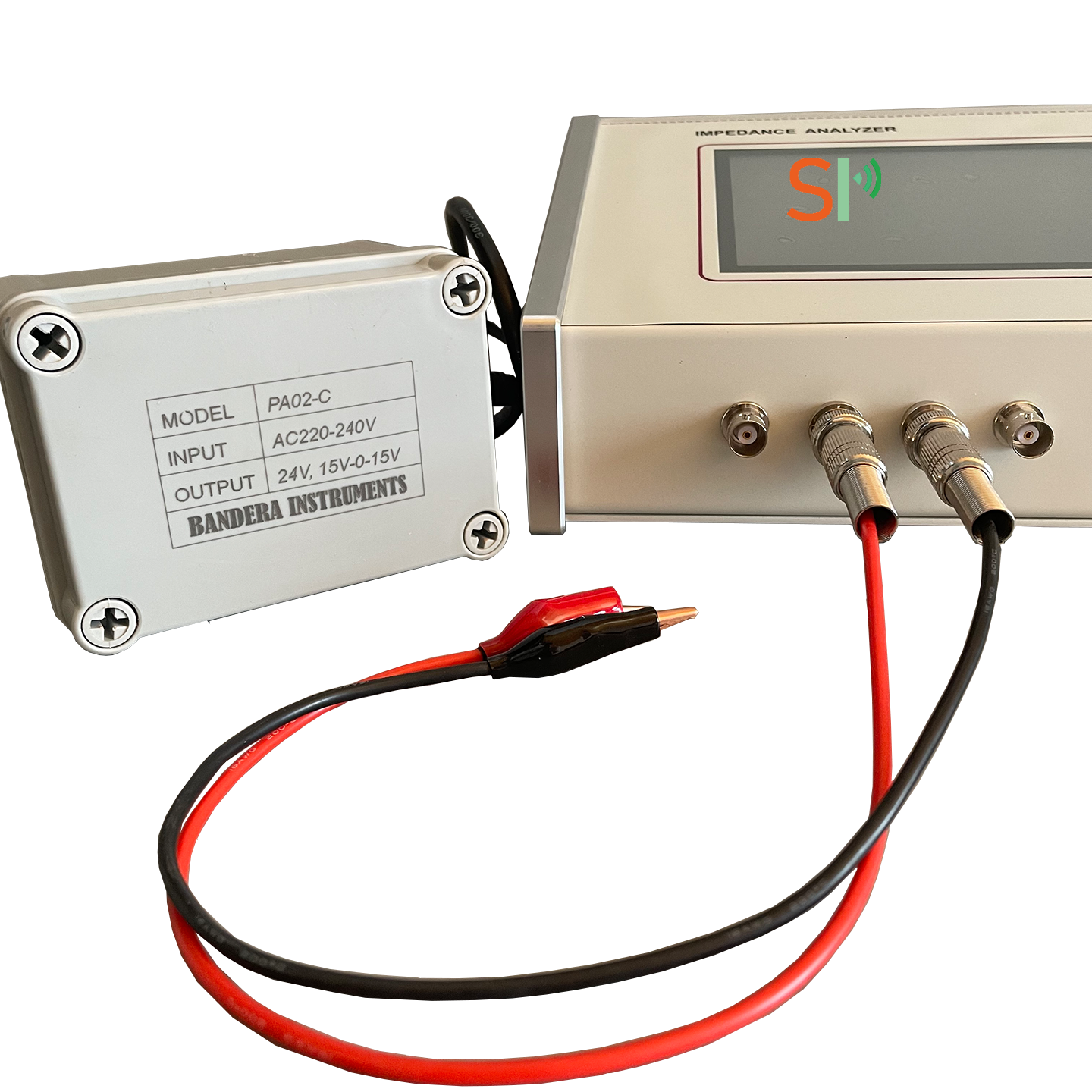

Power supply | AC100V-AC250V,50-60Hz | ||
1. High impedance measurement accuracy, up to 0.001khz;
2. It is easy to judge defects through admittance circle and logarithmic curve;
3. The test results completely distinguish the vibration point and half power point;
4. The test data computer can store and print indefinitely and trace the data source;
5. Automatic filtering and statistics, and parameter filtering can be set;
6. Automatic operation has high efficiency and simple operation, avoiding manual error;
7. It is simple, easy to use, the combination of indicators and graphics, accurate parameters, low price, very strong availability for production, etc.
Functions moldel | SP520A-S | SP520A-T | SP520A-V |
Characteristics | Portable,Full-screen touch screen,7.8 inch screen | ||
Size | L 240 mm;W 190mm;Front height 50mm;Back height 100mm | ||
Frequency range | 1KHZ-1MHZ | 1-3MHZ | 1-5MHZ |
Measurement | All parametric graphs | ||
Basic accuracy | <0.1% | ||
Measuring speed | 5 seconds per piece(1200 point scan) | ||
Frequency accuracy | ±10ppm | ||
Phase Accuracy | 0.15 degrees | ||
| Ambient temperature | 10-40ºC | ||
Impedance range | 1Ω-1MΩ | ||
Stepped frequency | 0.1Hz to Any | ||
Power supply | AC100V-AC250V,50-60Hz | ||
1. High impedance measurement accuracy, up to 0.001khz;
2. It is easy to judge defects through admittance circle and logarithmic curve;
3. The test results completely distinguish the vibration point and half power point;
4. The test data computer can store and print indefinitely and trace the data source;
5. Automatic filtering and statistics, and parameter filtering can be set;
6. Automatic operation has high efficiency and simple operation, avoiding manual error;
7. It is simple, easy to use, the combination of indicators and graphics, accurate parameters, low price, very strong availability for production, etc.
