High-Efficiency 20kHz Ultrasonic Equipment for Nanoparticle Dispersion & Sonochemistry

Frequency: 20KHz
Power: 1000W/2000W/3000W
Generator: Digital Type
Control Method: Manual or external control(RS485: Optional)
Min order: 1PCS
Availability:
Quantity:
  • SPS20-3000

  • SP

  • 8543709990

Induction:

Ultrasonic Cavitation for Powerful Dispersion & Depolymerization

Our 20kHz ultrasonic equipment uses high-intensity cavitation to break down particles, disperse powders, and initiate chemical reactions efficiently. When ultrasound passes through a liquid, it creates microscopic bubbles that rapidly collapse, releasing extreme energy—up to 5,000K in temperature and 2,000 atmospheres of pressure.

This powerful process results in:

Efficient nanoparticle dispersion

Depolymerization of molecular chains

Fast and clean chemical reactions

Breakdown of agglomerates and solid particles

Surface cleaning and pitting effects

With liquid jet speeds up to 280 m/s, this equipment ensures reliable performance in sonochemistry, nanomaterial processing, polymer treatment, and more.

Experience faster, cleaner, and more effective processing with our ultrasonic technology.




Performance advantages:

1) Compared with the traditional mixing and ball milling process, the operation cost per unit capacity can be greatly reduced. It is especially suitable for industrial production.

2) For liquid-liquid mixture, the chemical reaction speed can be increased, the amount of additives can be reduced, and the fully mixed solution is not suitable for stratification for a long time.

3) For the solid-liquid mixture, the easily agglomerated nanoparticles can be opened in a short time, and the dispersed ultrafine particles are not easy to agglomerate again.

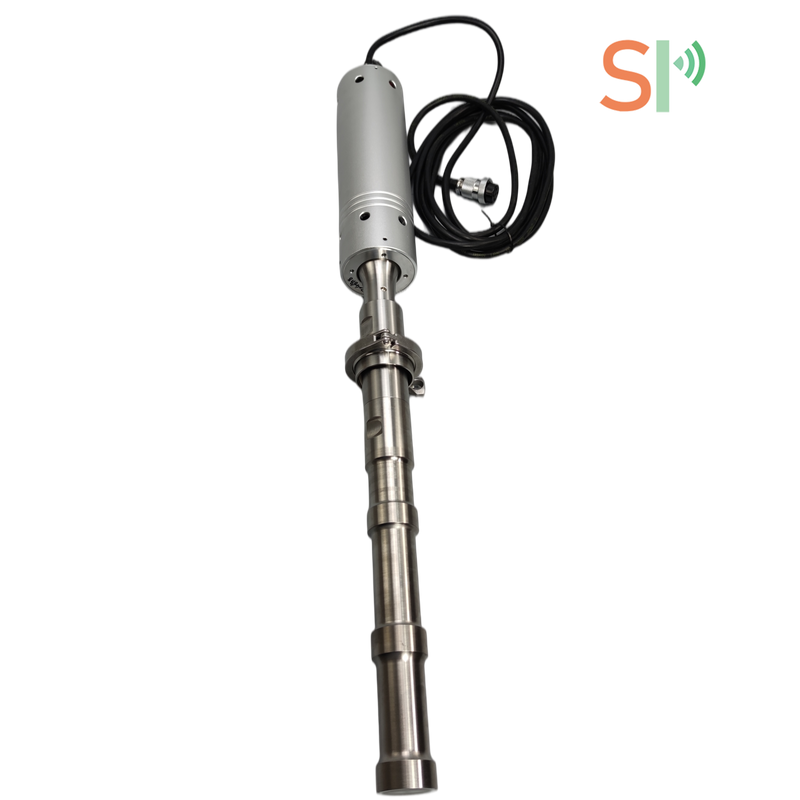

ultrasonic probe
ultrasonic probe
ultrasonic probe


Detailed Paramaters:

Model

SPS20-500S

SPS20-1000S

SPS20-1000

SPS20-2000

SPS20-3000

SPS20-3000Z

Frequency

20Khz

20Khz

20Khz

20Khz

20Khz

20Khz

Power

500 W

1000 W

1000 W

2000W

3000W

3000 W

Voltage

220V

220V

220V

220V

220V

220V

Pressure

Normal

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

>10 W/cm²

>10 W/cm²

>10 W/cm²

>40 W/cm²

>60 W/cm²

>60 W/cm²

Processing capacity

(L/H)

0.5-2.0

1.0-4.0

5.0

20.0

50.0

100.0

Material of probe

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Generator

Digital type

Digital type

Digital type

Digital type

Digital type

Digital type


Product Applications:

Our 20kHz Ultrasonic Sonochemical Equipment is widely used in both laboratory and industrial settings for advanced material processing, chemical reactions, and nano-level dispersion. Key applications include:

✅Nanomaterials

Dispersing nanoparticles (e.g., CNTs, graphene, silica, TiO₂)

Breaking down agglomerates and ensuring uniform particle distribution

✅ Sonochemistry

Accelerating reaction rates through cavitation

Promoting radical formation and enhanced molecular interactions

✅ Polymer Science

Depolymerization of plastics and resins

Mixing and modification of polymer solutions

✅ Pharmaceuticals & Biotech

Cell lysis and extraction of intracellular compounds

Enhancing drug solubility and formulation stability

✅ Cosmetics & Food Industry

Emulsification of oil and water-based formulations

Stabilizing lotions, creams, and suspensions

✅ Environmental Applications

Breaking down pollutants in wastewater

Enhancing sludge disintegration and sample preparation
