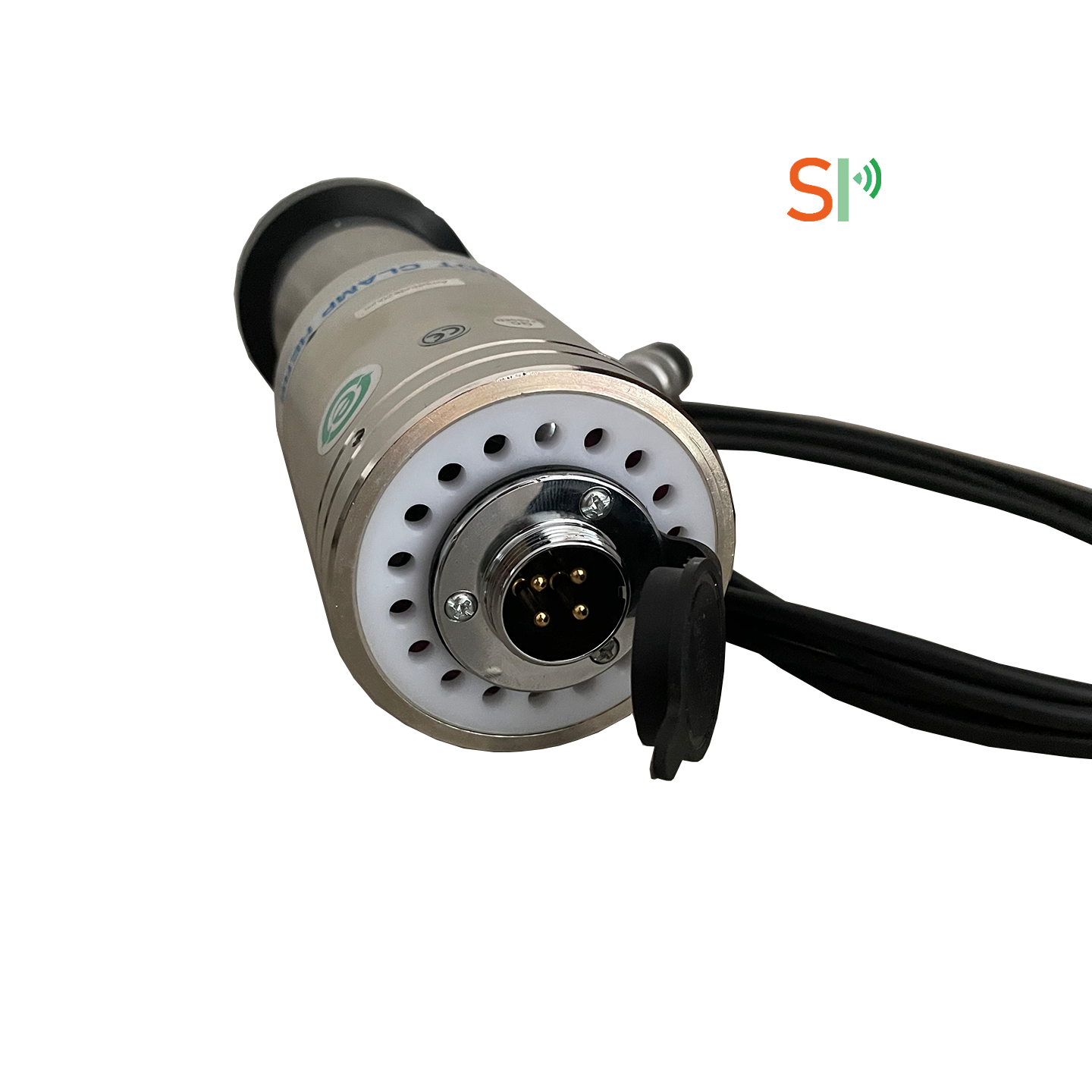

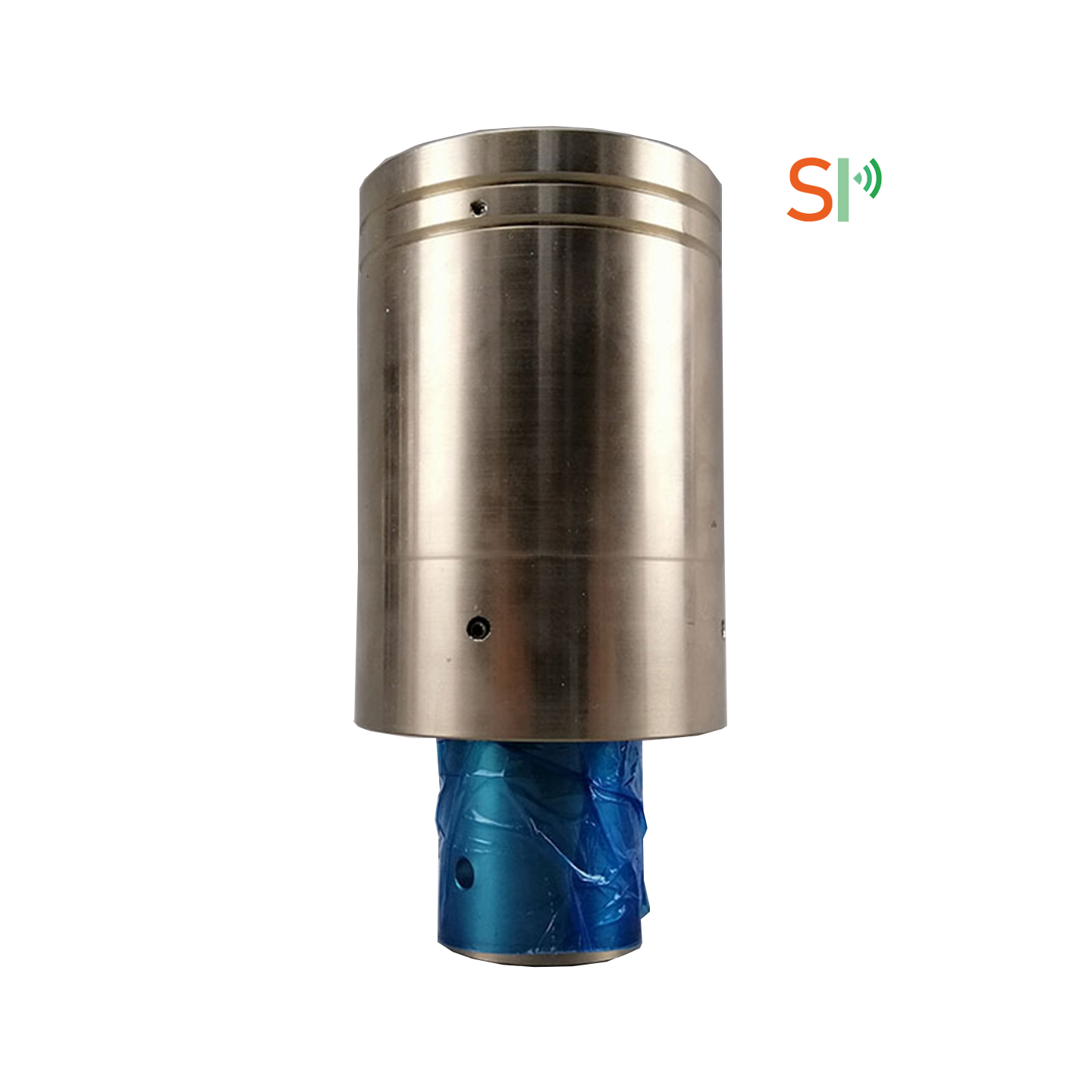

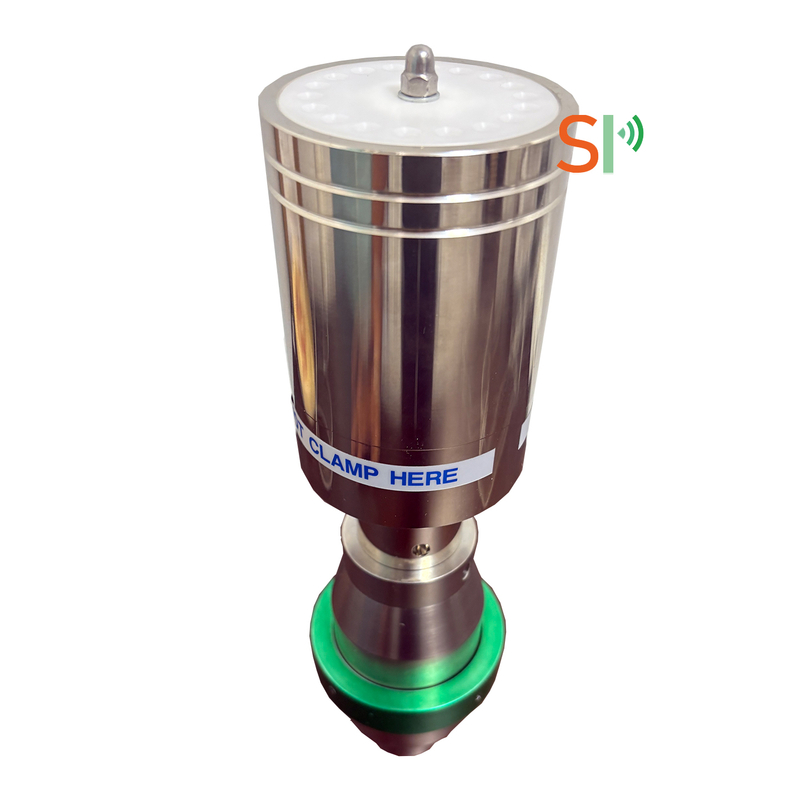

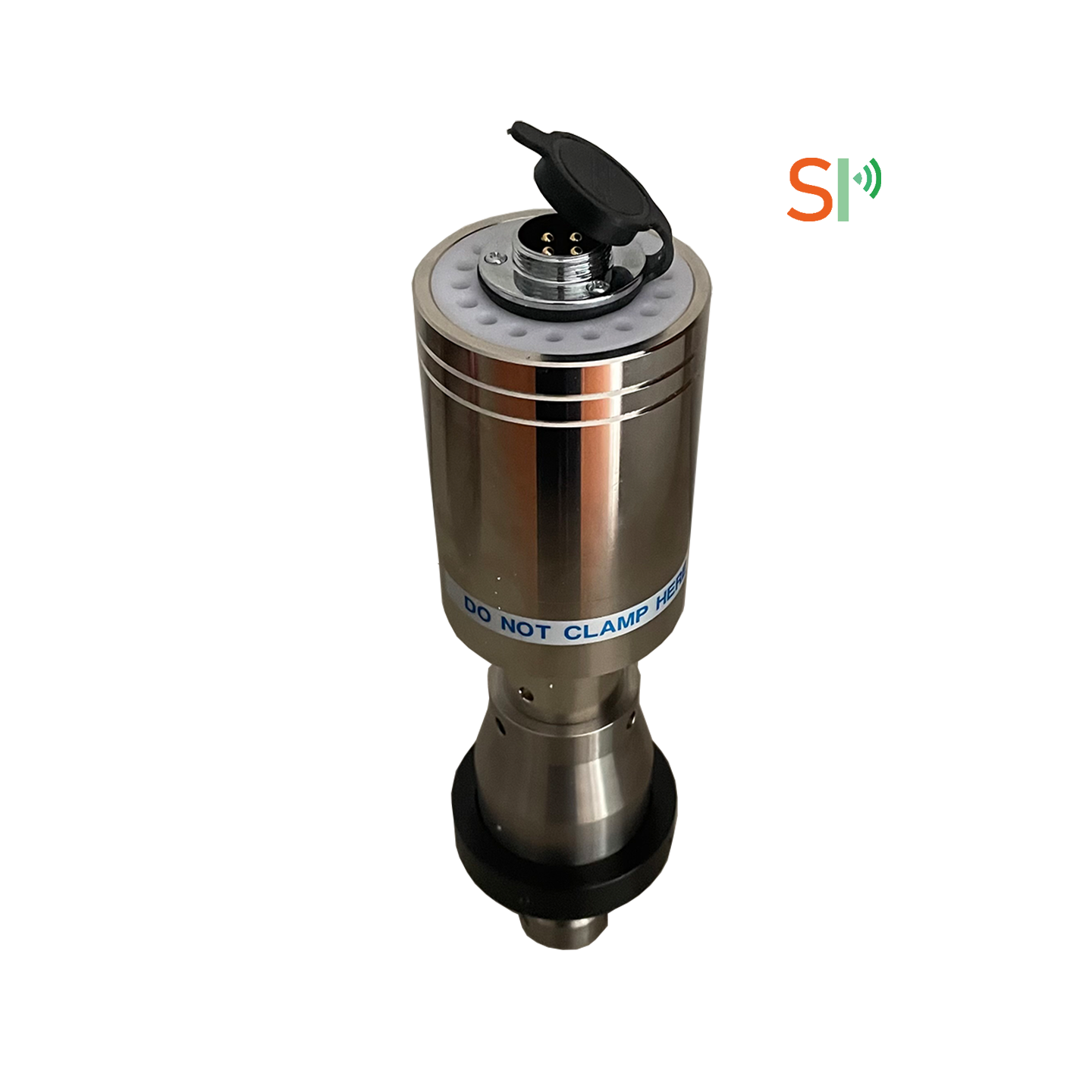

High Power Ultrasonic Converter with Booster – Branson CJ20 Replacement, Durable And Reliable Quality

Frequency: 20Khz

Ceramic diameter: 50mm

Quantity of ceramic: 6

Connect screw: 1/2-20UNF

Capacitance: 8000-11000pf

Power: 3300W

Availability:

Quantity:



Inquire Add to Basket

Model:
Branson CJ20 Replacement
Brand:
SP
Code:
8543709990

Product Description

Introduction:

SP TECH offers a large number of converter types in order to achieve the best results for each application. The converters transform the electrical oscillations produced by the ultrasonic generator into mechanical sound waves.

Ultrasonic converters are fitted with 2, 4 or 6 ceramic discs, depending on the application. The latter are predominantly used in the packaging industry and for continuous use. The oscillations are best transferred to the ultrasonic workpiece through the ceramic discs, thereby reducing process times and ensuring high process reliability. The top quality housings are very strong and long-lasting and have various HF interfaces.

Specification:

Branson CJ20 converter replacement for 2000 / 2000X actuator and IW systems. CJ-20 converter for use with all Branson® 20 kHz 2000 & 2000X series welders.

Model	Branson CJ20 Replacement
Frequency	20Khz
Output power	3300Watt
Joint bolt	1/2-20UNF
Ceramic disc Diameter	50mm
Quantity of Ceramic discs	4pcs
Capacitance	20nF
Application	Welding machine

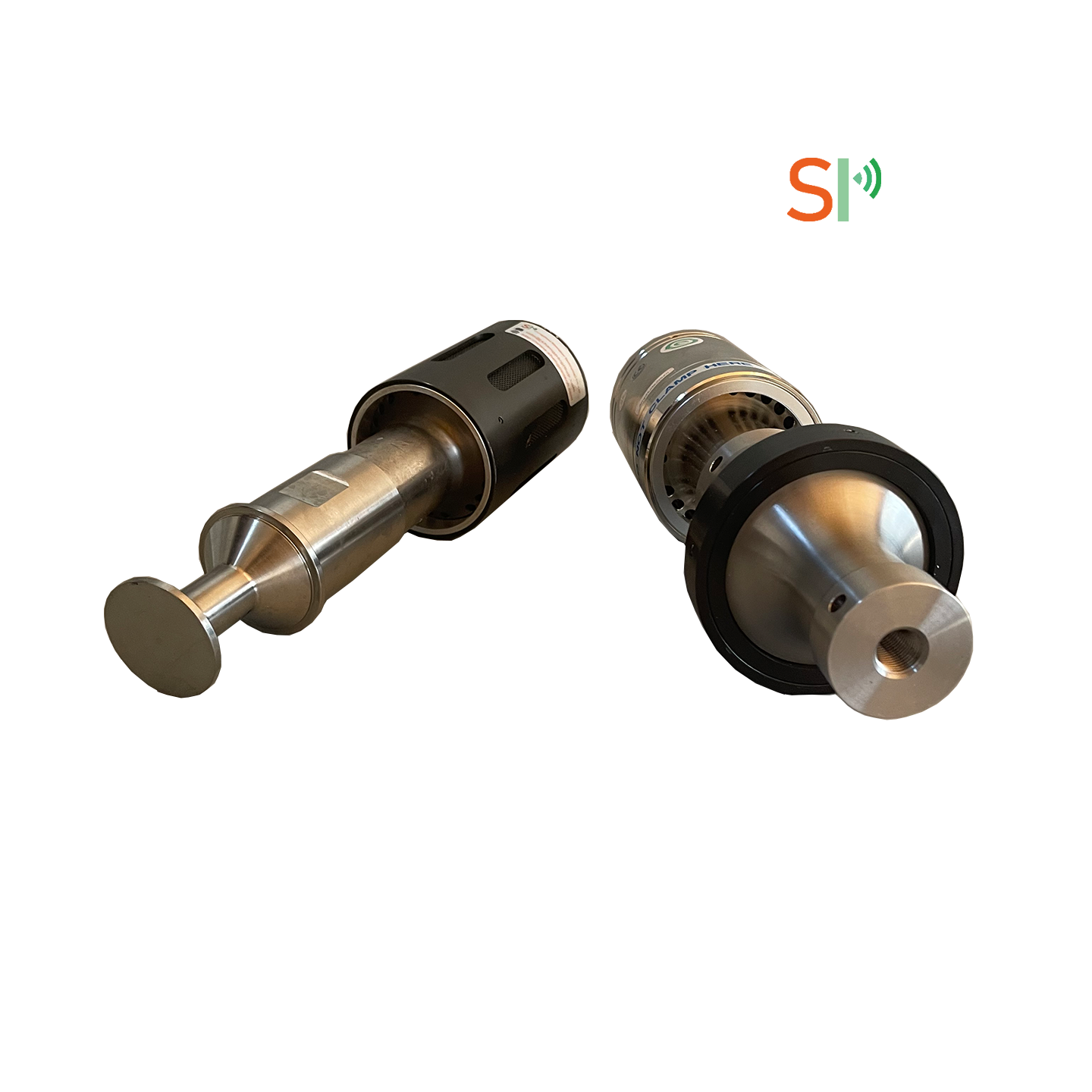

Demonstration of Branson CJ20 Replacement:

Application:

Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system, which can be widely used to do welding in various kinds of industries.

Applied Industries:

Automobile industry, electric industry, medical industry, household appliance industry, non-woven fabric, clothing, packing, office supplies, toys, etc.

Applied Machines:

Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.

Advanatges:

1.Horn materials available: titanium, aluminum, or steel.

2.Ceramic rings and titanium are imported from Japan and Germany.

3.After assembly, all transducers undergo an aging process before testing and final assembly. Since the properties of piezoelectric materials may change over time and under pressure, this step helps to identify any nonconforming materials.

4.Each transducer is individually tested to ensure excellent performance before shipping.

5.Features low impedance, high stability, long service life, and superior reliability.

6.Customization services available.

7.One-year warranty included.

Why choose SP TECH?

1. Innovation & Creation, SP TECH’ R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

2. Same quality, half the price, double the value. Each product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

3. Oversea Sales Team now available! If you’d like to work with us, please get in touch!

4. Good components. Poreless, high-density, military-grade piezoceramics, and using the superior quality aluminum, Stainless Steel, titanium raw materials.

Reliable, Powerful, and Customizable. We can customize products according to your requirements, Also supply OEM service.

5. Customized ultrasonic solution for different applications, delivery time will be extended upto 3 weeks.
