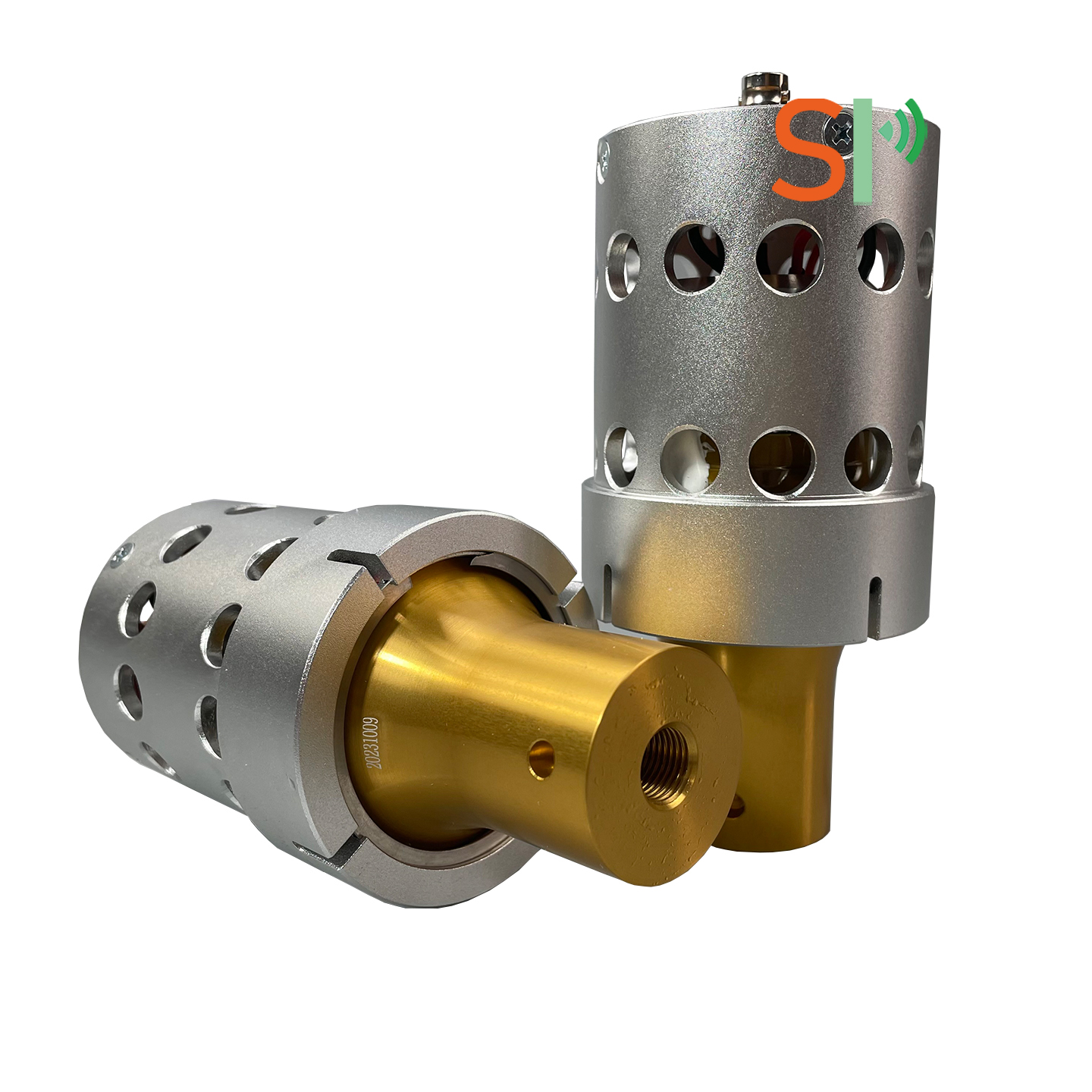

High Quality 20KHz Ultrasonic Converter Branson 402 Replacement

Frequency: 20Khz Ceramic diameter: 50mm Quantity of ceramic: 4 Connect screw: 1/2-20UNF Impedance: 10Ω Power: 900W
  • Branson402 Replacement

  • SP

  • 8543709990


SP TECH offers a large number of converter types in order to achieve the best results for each application. The converters transform the electrical oscillations produced by the ultrasonic generator into mechanical sound waves.

Ultrasonic converters are fitted with 2, 4 or 6 ceramic discs, depending on the application. The latter are predominantly used in the packaging industry and for continuous use. The oscillations are best transferred to the ultrasonic workpiece through the ceramic discs, thereby reducing process times and ensuring high process reliability. The top quality housings are very strong and long-lasting and have various HF interfaces.



Branson 402 converter replacement used for all Branson® 20 kHz 2000 & 2000X series welders.


Branson 402 Replacement



Output power


Joint bolt


Ceramic disc Diameter


Quantity of Ceramic discs



Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole

ultrasonic system, which can be widely used to do welding in various kinds of industries.

Applied Industries: automobile industry, electric industry, medical industry, household appliance industry,

non-woven fabric, clothing, packing, office supplies, toys, etc.

Applied Machines:

Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.


Competitive Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Ceramic rings and titanium are imported from Japan and Germany
3. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time to testing will identify nonconforming material.
4. One by one testing to ensure that each transducer performance are excellent before shipping.
5. Low impedance, high stability with long life and high reliability.

6. Provide customized service

7. One year warranty

Why choose SP TECH?

1. Innovation & Creation, SP TECH’ R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

2. Same quality, half the price, double the value. Each product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

3. Oversea Sales Team now available! If you'd like to work with us, please get in touch!

4. Good components. Poreless, high-density, military-grade piezoceramics, and using the superior quality aluminum, Stainless Steel, titanium raw materials.

Reliable, Powerful, and Customizable. We can customize products according to your requirements, Also supply OEM service.

5. Customized ultrasonic solution for different applications, delivery time will be extended upto 3 weeks.

Packing & Shipping


1. Do you have it in stock?
We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers' different requirements.

2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object, send it to us or send detail pictures.

3.How long do you make the order product?
Common products for 7days, big qty and none standard products for 20days.

4. Do you have operating manual?
Of course, we will put it with the goods together.

5. How about the quality?
We have export to many other customers from all over the world, the feed back is good,quality is the first of our company.

6. Could you do OEM?
Yes, of course. We can produce according customers' requirement, just send us your requirements and design of drawing and sample.

7. Could we as your agent?
Of course. We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
