| Quantity: | |
|---|---|
Branson402 Replacement
SP
8543709990
Description:
SP TECH offers a large number of converter types in order to achieve the best results for each application. The converters transform the electrical oscillations produced by the ultrasonic generator into mechanical sound waves.
The 20kHz ultrasonic converter replacement for Branson 402 is designed as a fully compatible transducer for industrial ultrasonic welding systems.
This ultrasonic converter provides stable frequency output, high energy conversion efficiency, and long service life. It can directly replace the original Branson 402 converter without machine modification.
Manufactured with high-performance piezoelectric ceramics and titanium alloy housing, it ensures reliable operation in continuous industrial environments.
Contact us now for a free quote
Specifications:
Branson 402 converter replacement used for all Branson® 20 kHz 8400 series welders.
Model | Branson 402 Replacement |
Frequency | 20Khz |
Output power | 900Watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 50mm |
Quantity of Ceramic discs | 4pcs |
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole
ultrasonic system, which can be widely used to do welding in various kinds of industries.
Applied Industries: automobile industry, electric industry, medical industry, household appliance industry,
non-woven fabric, clothing, packing, office supplies, toys, etc.
Applied Machines:
Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.
Competitive Advantages:
1. Titanium, aluminum, steel materials of horn optional.
2. Ceramic rings and titanium are imported from Japan and Germany
3. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time to testing will identify nonconforming material.
4. One by one testing to ensure that each transducer performance are excellent before shipping.
5. Low impedance, high stability with long life and high reliability.
6. Provide customized service
7. One year warranty
Display other converters:
 |  |  |  |

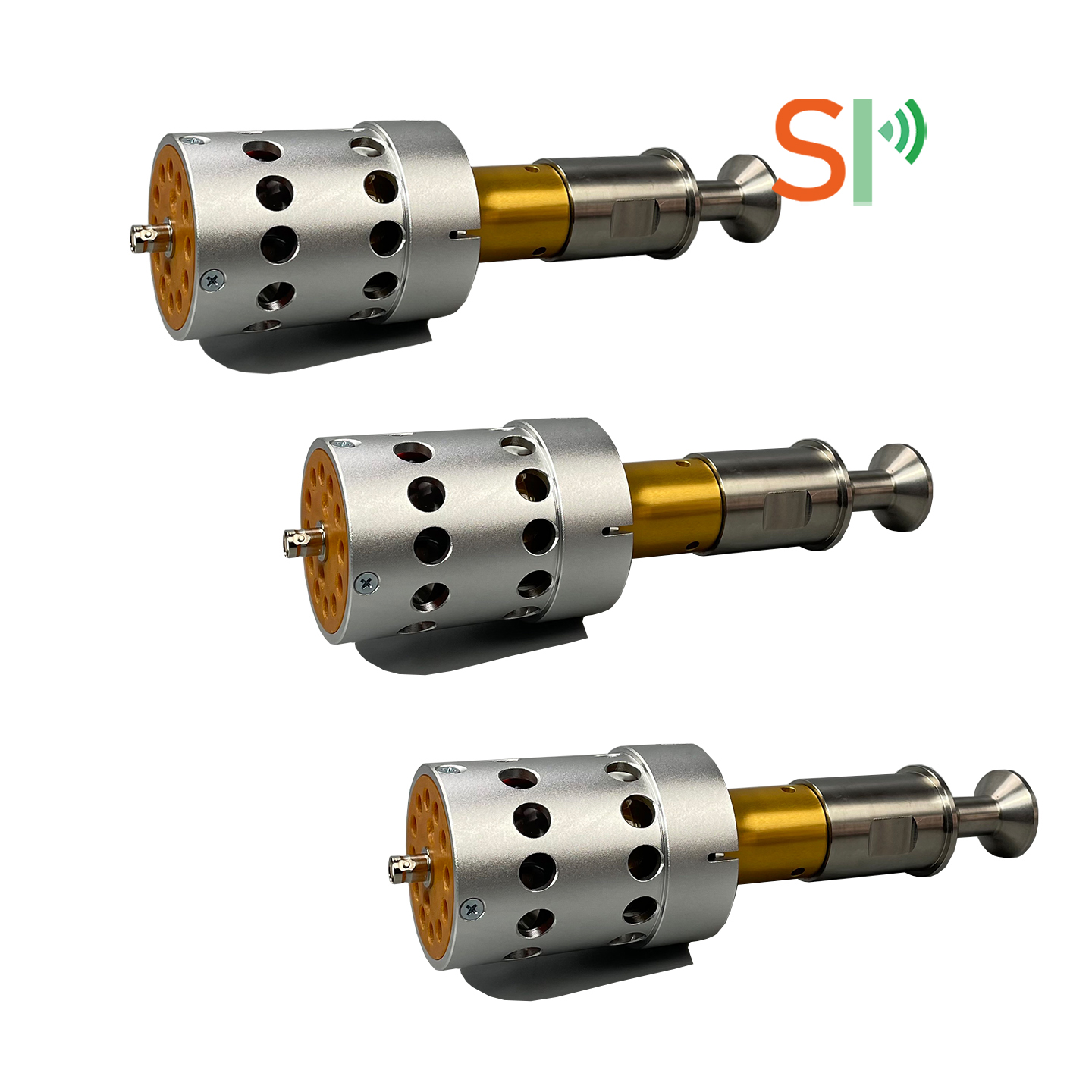

| Rinco Conventer Replacement | Dukane 41C30 Replacement | Branson 4TP Replacement | Branson 803 Replacement |
