Branson CJ20 Replacement
SP
8543709990
SP TECH offers a large number of converter types in order to achieve the best results for each application. The converters transform the electrical oscillations produced by the ultrasonic generator into mechanical sound waves.
Ultrasonic converters are fitted with 2, 4 or 6 ceramic discs, depending on the application. The latter are predominantly used in the packaging industry and for continuous use. The oscillations are best transferred to the ultrasonic workpiece through the ceramic discs, thereby reducing process times and ensuring high process reliability. The top quality housings are very strong and long-lasting and have various HF interfaces.

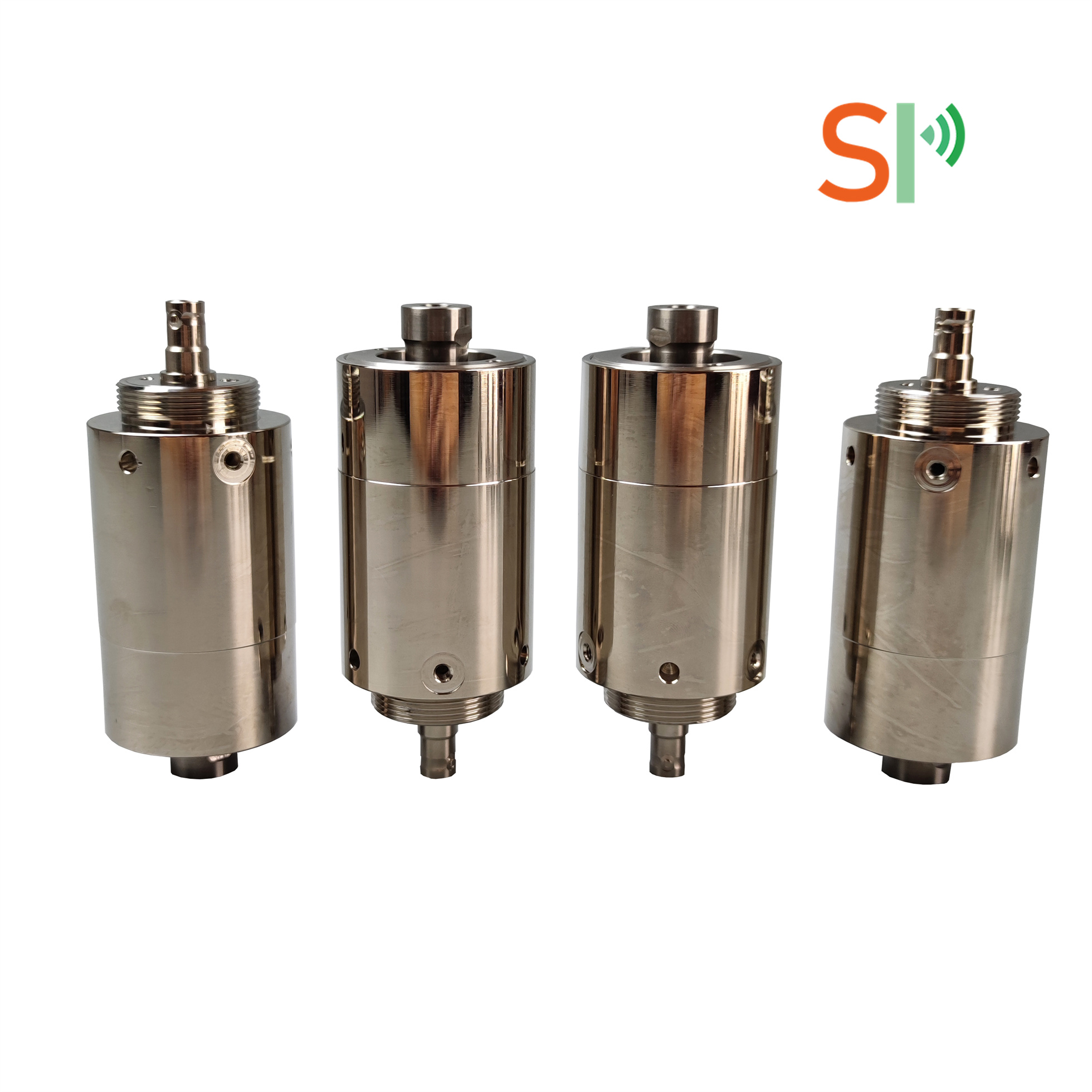

Branson CJ20 converter replacement for 2000 / 2000X actuator and IW systems.
CJ-20 converter for use with all Branson® 20 kHz 2000 & 2000X series welders.
Model | Branson CJ20 Replacement |
Frequency | 20Khz |
Output power | 3300Watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 50mm |
Quantity of Ceramic discs | 4pcs |
Capacitance | 20nF |
Application | Welding machine |
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole
ultrasonic system, which can be widely used to do welding in various kinds of industries.
Applied Industries:
Automobile industry, electric industry, medical industry, household appliance industry,
non-woven fabric, clothing, packing, office supplies, toys, etc.
Applied Machines:
Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.
1. Titanium, aluminum, steel materials of horn optional.
2. Ceramic rings and titanium are imported from Japan and Germany
3. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time to testing will identify nonconforming material.
4. One by one testing to ensure that each transducer performance are excellent before shipping.
5. Low impedance, high stability with long life and high reliability.
6. Provide customized service
7. One year warranty
SP TECH offers a large number of converter types in order to achieve the best results for each application. The converters transform the electrical oscillations produced by the ultrasonic generator into mechanical sound waves.
Ultrasonic converters are fitted with 2, 4 or 6 ceramic discs, depending on the application. The latter are predominantly used in the packaging industry and for continuous use. The oscillations are best transferred to the ultrasonic workpiece through the ceramic discs, thereby reducing process times and ensuring high process reliability. The top quality housings are very strong and long-lasting and have various HF interfaces.
Branson CJ20 converter replacement for 2000 / 2000X actuator and IW systems.
CJ-20 converter for use with all Branson® 20 kHz 2000 & 2000X series welders.
Model | Branson CJ20 Replacement |
Frequency | 20Khz |
Output power | 3300Watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 50mm |
Quantity of Ceramic discs | 4pcs |
Capacitance | 20nF |
Application | Welding machine |
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole
ultrasonic system, which can be widely used to do welding in various kinds of industries.
Applied Industries:
Automobile industry, electric industry, medical industry, household appliance industry,
non-woven fabric, clothing, packing, office supplies, toys, etc.
Applied Machines:
Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.
1. Titanium, aluminum, steel materials of horn optional.
2. Ceramic rings and titanium are imported from Japan and Germany
3. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time to testing will identify nonconforming material.
4. One by one testing to ensure that each transducer performance are excellent before shipping.
5. Low impedance, high stability with long life and high reliability.
6. Provide customized service
7. One year warranty
